Jim,

 George's email is - ggianios at verizon.net - but please don't inundate him
with email just yet as the new products will not be available for several
weeks to a month. There will be an announcement here at that time. The
"yellow box" nodes have been available for over a year and are currently
deliverable on receipt of order.


*73 Doug*

*WA3DSP*

*http://www.crompton.com/hamradio <http://www.crompton.com/hamradio>*

On Tue, Jan 1, 2019 at 9:59 AM "James Hause via ARM-allstar" <
arm-allstar at hamvoip.org> wrote:

> Hi Doug,
>    Well I probably missed something obvious, but how does one
> contact George, WB3DZZ to discuss buying one?  Just via email ??
> 73,
> Happy New Year, Jim
>
> On Mon, Dec 31, 2018 at 9:26 PM "Doug Crompton via ARM-allstar" <
> arm-allstar at hamvoip.org> wrote:
>
> > Since you mentioned a radio-less node.....
> >
> > Happy New Year and I can officially announce some new products that will
> > be available in the coming month from George, WB3DZZ. In addition to his
> > current "Yellow Box" nodes which have been very successful with hundreds
> > delivered he will be offering two FOBS and a radio-less node. All of
> these
> > products have been successfully tested and are now in production. FOB
> > delivery will start sometime in January 2019 and radio-less nodes shortly
> > after that.
> >
> > The FOB's use the CM119B and have RF isolation on all radio and GPIO
> > leads. One FOB is strictly for radio use with the five common signals and
> > the other has all the GPIO like the DMK URI. Although no price has been
> set
> > yet they will sell for considerably less than the DMK URI and less than

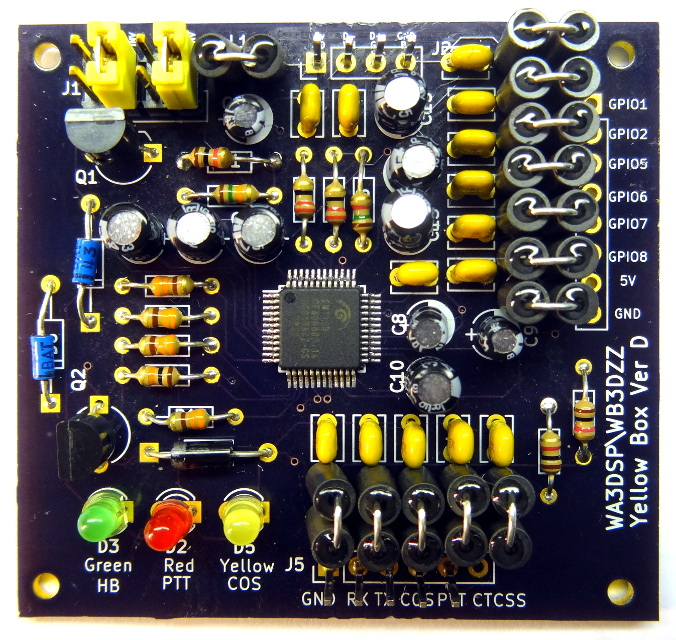

> > most other FOB's currently out there. A photo of  the Full GPIO board is
> > attached. It is smaller than most other boards and the board without GPIO
> > is smaller yet.
> >
> > The Radio-less node puts everything in one box and includes an adaption
> of
> > the Yaesu Microphone to overcome the problems with in mic. DTMF. It uses
> an
> > Arduino to convert Yaesu Mic. output to DTMF. It also includes an analog
> > devices mic compressor/limiter chip which is necessary when using direct
> > mic. input to an A/D. It makes a complete plug and play package with an
> > extremely powerful 60W rated Class D audio amplifier. Connect 12V,
> > Ethernet, and a speaker and you have a complete node. It can also be run
> > wireless  on 2.4 or 5G. This is ideal for mobile operation or sites where
> > RF might be undesirable such as an EOC. Again final price has not been
> set

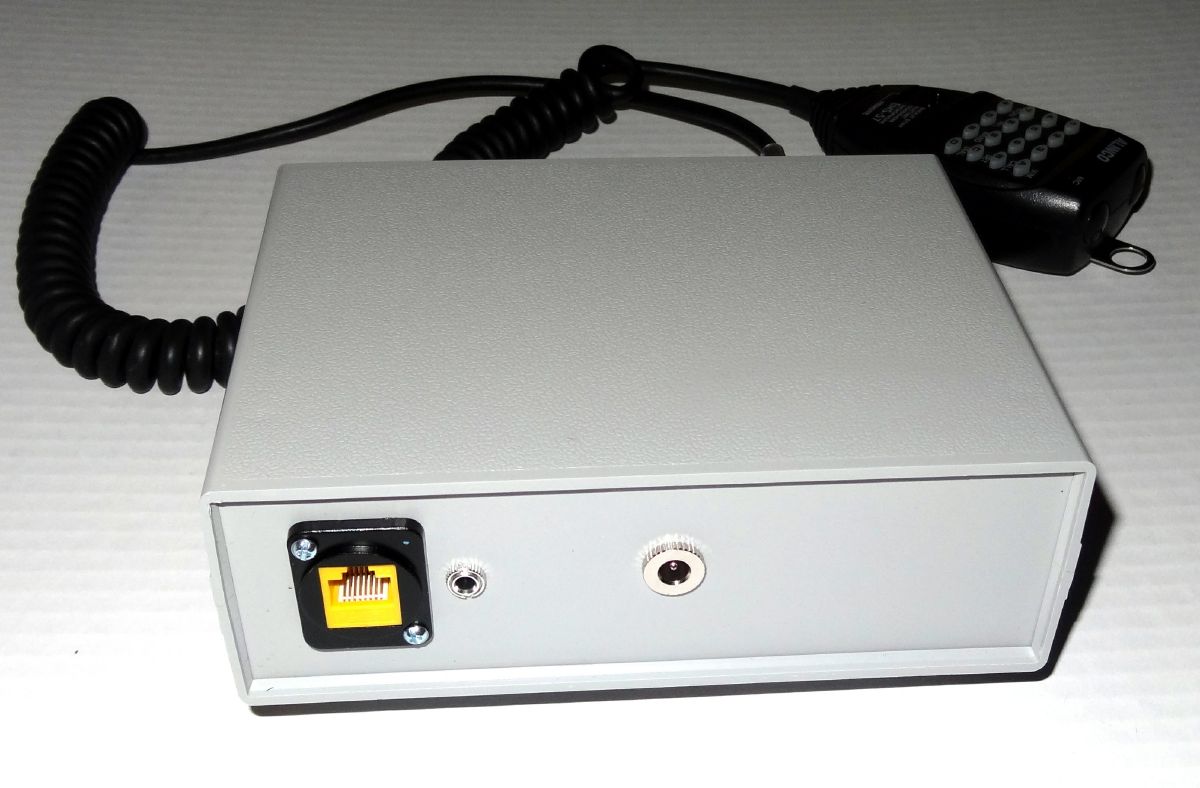

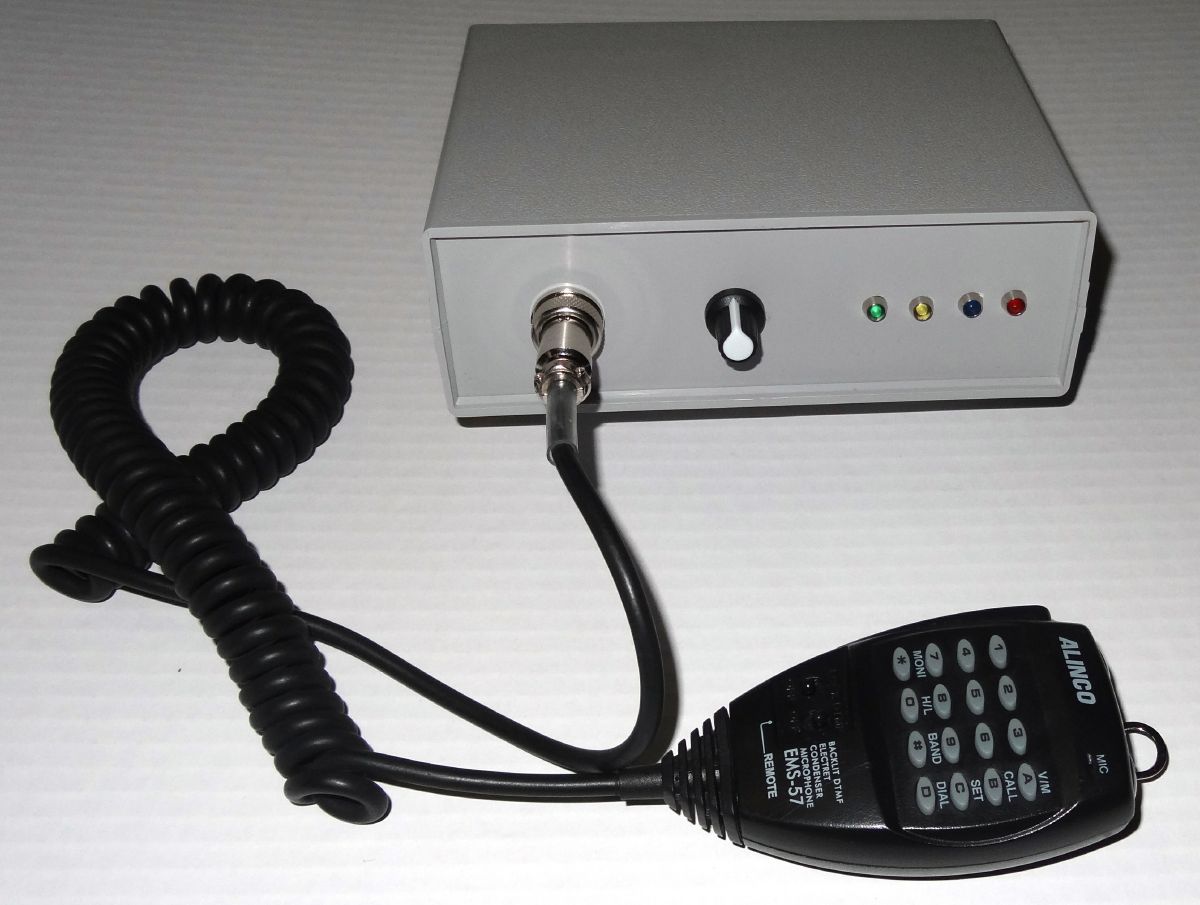

> > yet and it will not be available until later in January. A preliminary
> > photo is attached. The final version will be in the same case but
> slightly
> > different layout.
> >

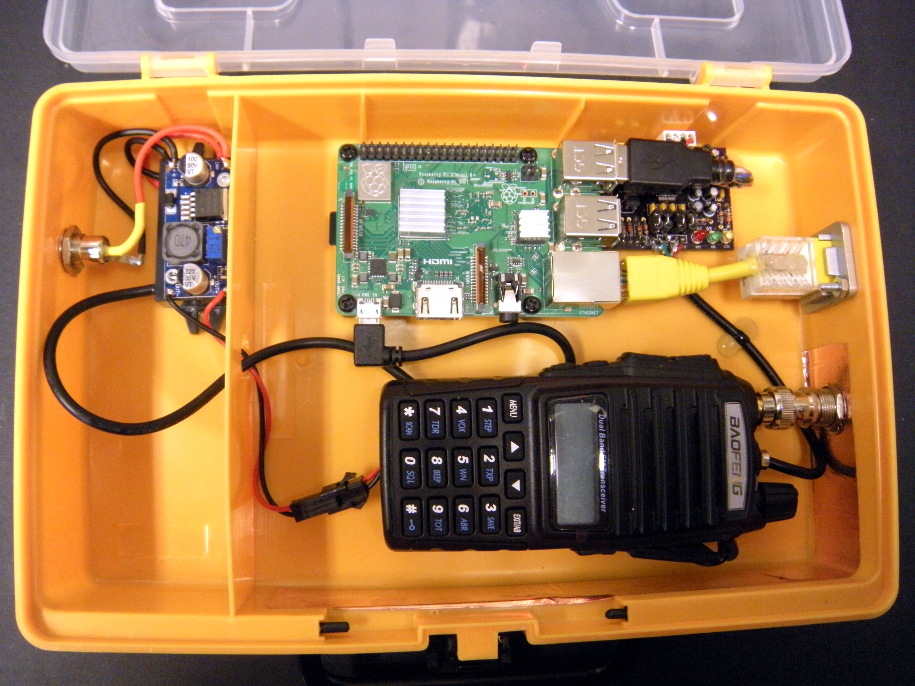

> > Also shown is the "Yellow Box" node with the new FOB board and new
> layout.
> >
> > Final photos, prices and specs will be available soon.
> >
> >
> > *73 Doug*
> >
> > *WA3DSP*
> >
> > *http://www.crompton.com/hamradio <http://www.crompton.com/hamradio>*
> >
> >
>
>
