[arm-allstar] Problem booting RPi image

[Les Barker]

Hi Doug

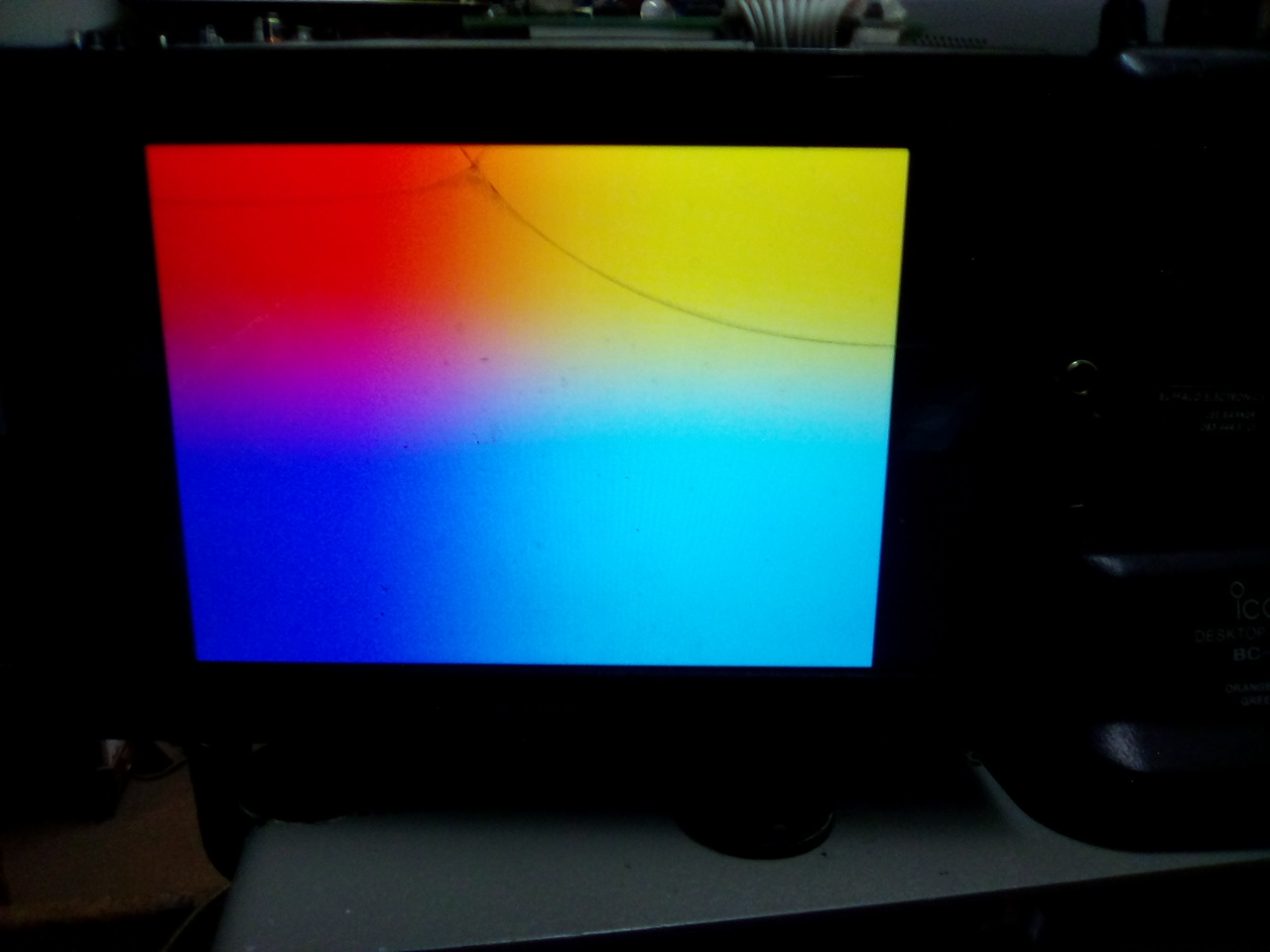

Attached, screen view of HDMI monitor while RPi is supposedly booting.

73
Les

-----Original Message-----
From: ARM-allstar [mailto:arm-allstar-bounces at hamvoip.org] On Behalf Of
"Doug Crompton via ARM-allstar"
Sent: 25 February 2019 06:17 PM
To: ARM Allstar
Cc: Doug Crompton
Subject: Re: [arm-allstar] Problem booting RPi image

Les,

 If you are using Windows to download you need to use the  .exe  download
file from hamvoip.org. Once downloaded you need to actually run that file
in Windows. It is a self executable extracter into a .img file. The
resulting file will be a large 4GB .img file.  You use win32diskimager to
write the .img file to the SD card. Then take the card and install it into
the Pi.

I would be glad to help you further if for some reason this is not working
for you.


*73 Doug*

*WA3DSP*

*http://www.crompton.com/hamradio <http://www.crompton.com/hamradio>*

On Mon, Feb 25, 2019 at 7:26 AM "Les Barker via ARM-allstar" <
arm-allstar at hamvoip.org> wrote:

> Hi Steve, thanks for reply.
>
> I am using the Win32 Disk imager, which I have used many times in the
past.
>
> Regards
> Les
>
>
>
> -----Original Message-----
> From: ARM-allstar [mailto:arm-allstar-bounces at hamvoip.org] On Behalf Of
> "Steve Agee via ARM-allstar"
> Sent: 25 February 2019 02:03 PM
> To: arm-allstar at hamvoip.org
> Cc: Steve Agee
> Subject: Re: [arm-allstar] Problem booting RPi image
>
> *What process are you using to write the image to the micro SD card? It
> sounds like perhaps you are trying to drag and drop the image, which
> will not work. You must save the image as a special Disk Image File type
> (.iso) and I personally use an app called DiskImager when using a
> Windows machine to do this. Please carefully read and follow the
> instructions posted at:
>   <https://hamvoip.org/#image>
>
> N5ZUA
> *
> On 2/25/2019 4:10 AM, "Les Barker via ARM-allstar" wrote:
> > Good day.
> >
> >
> >
> > I am new to Allstar and I was recommended to use the Hamvoip image, the
> > latest being RPi2-3_V1.5rc50.
> >
> >
> >
> > I have downloaded the image twice both as xz file and exe file. I have
> tried
> > 2 different 16Gb SD cards and an RPi 2 and 3.
> >
> >
> >
> > The image will not boot. All that displays on the HDMI monitor is the
> square
> > multicoloured Pi boot screen and nothing else.
> >
> >
> >
> > Any suggestion? Please!! Before I give up.
> >
> >
> >
> > 73
> >
> > Les
> >
