[arm-allstar] chinese mobile radio??

[Joe KD2NFC]

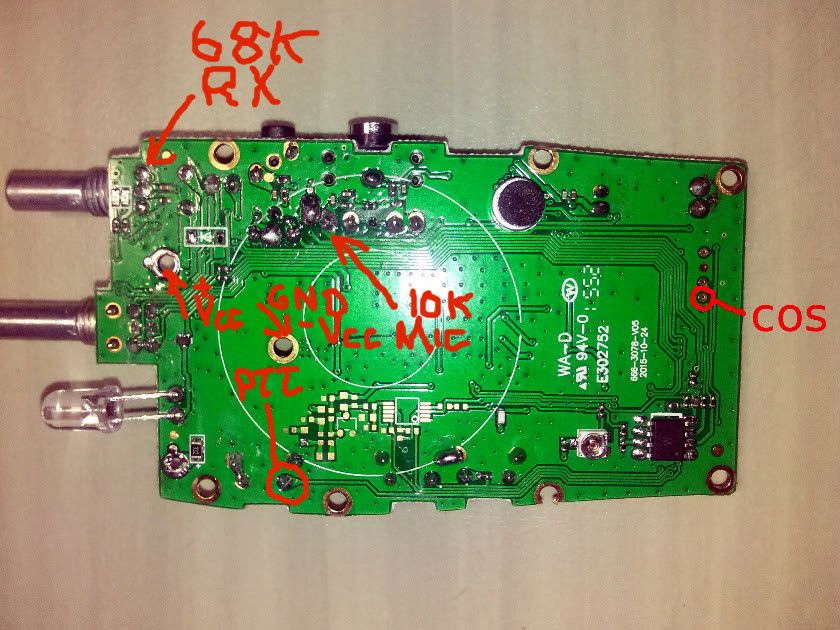

I stripped my Baofeng down and tapped right of the board what I needed.  My 888 is different then the one below but I followed those instructions. Tapping from the High side of volume control and mic line with some resistors to wiring COR right the op amp. I don’t need to worry about volume control on the knob, I adjust in the menu. Actually I took my volume knob off to fit it all in a small case.

Certainly not a plug and play route, I put all the guts in a box and made a nice kit. Not sure how others are doing it but for me the 888 is a great radio to make a kit out of.


-------------- next part --------------
A non-text attachment was scrubbed...
Name: image1.jpeg
Type: image/jpeg
Size: 107183 bytes
Desc: not available
URL: <http://lists.hamvoip.org/pipermail/arm-allstar/attachments/20190426/b1d9531e/attachment-0002.jpeg>
-------------- next part --------------


Mine


-------------- next part --------------
A non-text attachment was scrubbed...
Name: image2.jpeg
Type: image/jpeg
Size: 3794960 bytes
Desc: not available
URL: <http://lists.hamvoip.org/pipermail/arm-allstar/attachments/20190426/b1d9531e/attachment-0003.jpeg>
-------------- next part --------------



Sent from my iPhone

> On Apr 26, 2019, at 10:26 AM, Doug Crompton via ARM-allstar <arm-allstar at hamvoip.org> wrote:
>
> Any of the Baofeng radios need internal modifications to work with Allstar
> BUT you can build an external circuit to use the mic/earphone jack on just
> about all of the Baofengs the 888 NOT being included. I believe George is
> going to offer that mode on a FOB board in the near future. I will put out
> a howto on that simpler mod. The downside is the volume control effects the
> RX audio so it must be adjusted and fixed at a specific location. Again
> this will not work on the 888 but does work on the uv82 and uv5 models.
>
>
> *73 Doug*
>
> *WA3DSP*
>
> *http://www.crompton.com/hamradio <http://www.crompton.com/hamradio>*
>
>
>
> On Fri, Apr 26, 2019 at 10:19 AM "Joe KD2NFC via ARM-allstar" <
> arm-allstar at hamvoip.org> wrote:
>
>> The Baofeng 888 is a great radio for an AllStar node. It works, been
>> tested and in use by many. Heck it should be officially endorsed by Baofeng
>> themselves and the FCC. Lol.
>>
>> But seriously, it’s the cheapest workable option out there so go for it.
>>
>> Joe
>> KD2NFC
>>
>>
>> Sent from my iPhone
>>
>>> On Apr 26, 2019, at 9:29 AM, Doug Crompton via ARM-allstar <
>> arm-allstar at hamvoip.org> wrote:
>>>
>>> Gervais,
>>>
>>>   What power do you want to run? Is this local or longer distance? The
>>> Baofeng 888 or UV82 would be a good choice for local low power - ~1W. I
>>> would not recommend the TYT's as we have seen many problems with them in
>>> longer duty applications. The Alinco DR-x35 series are good but more
>>> expensive. There are not a lot of in between radios say in the $50 to
>> $100
>>> area that are good.
>>>
>>>
>>> *73 Doug*
>>>
>>> *WA3DSP*
>>>
>>> *http://www.crompton.com/hamradio <http://www.crompton.com/hamradio>*
>>>
>>>
>>>
>>> On Fri, Apr 26, 2019 at 8:31 AM "Gervais Fillion via ARM-allstar" <
>>> arm-allstar at hamvoip.org> wrote:
>>>
>>>> hi all
>>>> well is there a chinese mobile radio that i could used here for my node?
>>>> Motorola's are rare as hell and too $ and if a chinese can do the job
>> for
>>>> me,why not.
>>>>
>>>> i saw some month ago a member writing some article,the COS is easy to
>> find
>>>> on his board,
>>>> my system here is not working as i would like ,
>>>>
>>>> i need a radio and the soundcard modified for it.
>>>>
>>>> Right now i am using an GE Phoenix as TX and a Baofeng as receiver
>>>>
>>>> thanks for your help
>>>>
>>>> Gewrvais
>>>> ve2ckn
>>>> riviere-bleue
>>>>
