[arm-allstar] Using Icom 2AT for node

[Doug Crompton]

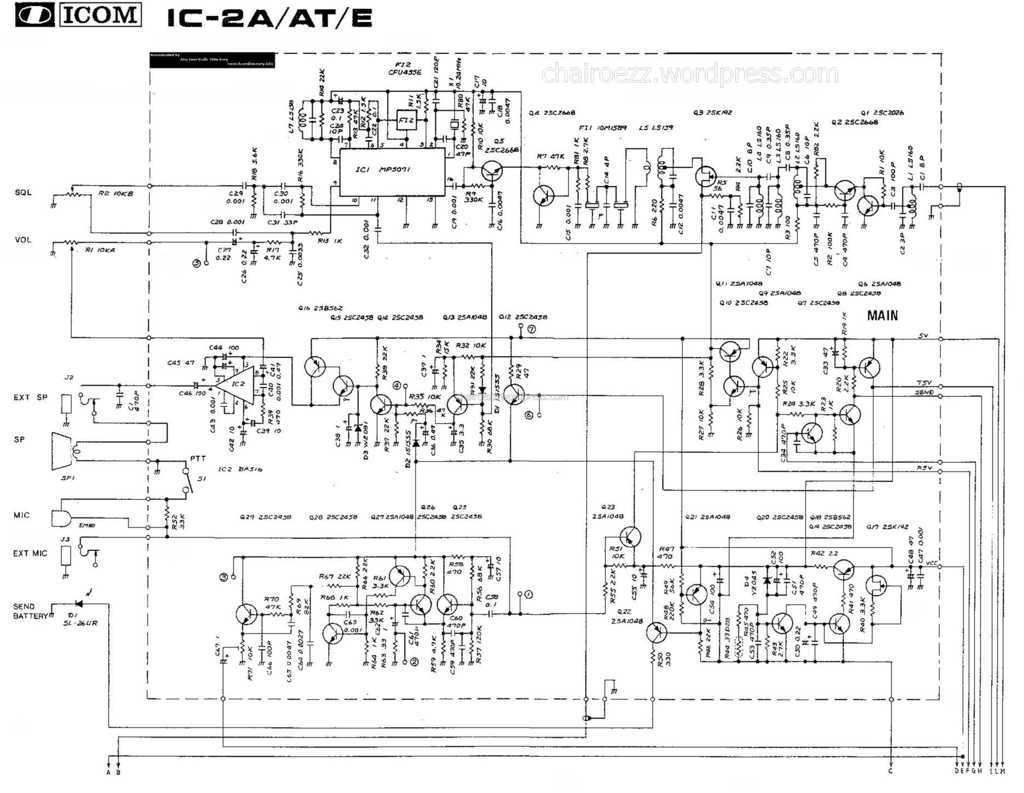

To add to my prior message attached is a schematic of the ICxA audio
section. IC2 pin 3 is powered by a receive signal. If you were to connect
COS to that point it should work. This would be COS set to USB or a high
COS active and low inactive. Most FOBS have a Schottky diode pointing
towards the radio. If not make sure it is in there. You do not want radio
voltage getting back to the FOB.


*73 Doug*

*WA3DSP*

*http://www.crompton.com/hamradio <http://www.crompton.com/hamradio>*

On Sun, Aug 26, 2018 at 8:35 PM Doug Crompton <wa3dsp at gmail.com> wrote:

> I believe the information you need is in this howto -
>
> http://www.repeater-builder.com/acc/acc-fc-1.html
>
> Scroll down and read about the IC2 COS.   The IC3 and IC4 would be the
> same. These  like many handhelds key the power to the audio output stage
> with receive signal thus saving power. This is the same way we pick up COS
> for the Baofengs.
>
> You do not need disc audio for simpleusb. Just use speaker and mic
> connections and no de or pre-emphasis.
>
>
> *73 Doug*
>
> *WA3DSP*
>
> *http://www.crompton.com/hamradio <http://www.crompton.com/hamradio>*
>
>
> On Sun, Aug 26, 2018 at 8:24 PM "Peter Dahl via ARM-allstar" <
> arm-allstar at hamvoip.org> wrote:
>
>> I have a couple of IC 3AT’s and would be interested in the same
>> information.
>>
>> Peter - WA7FUS
>>
>>
>> > On Aug 26, 2018, at 2:02 PM, Jay Urish via ARM-allstar <
>> arm-allstar at hamvoip.org> wrote:
>> >
>> > Team,
>> >
>> > I have a 2AT that I would like to use for a lunchbox node. I know where
>> I can tap for discriminator and mic and ptt / cor if I open the radio up.
>> Can I just use usbradio to handle all that and just use my top mic/ear
>> connections?
>> >
>> > Has anybody used a 2at for this?
>> >
>> >
>> > jay
>> >
>> > _______________________________________________
>> >
>> > ARM-allstar mailing list
>> > ARM-allstar at hamvoip.org
>> > http://lists.hamvoip.org/cgi-bin/mailman/listinfo/arm-allstar
>> >
>> > Visit the BBB and RPi2/3 web page - http://hamvoip.org
>>
>> _______________________________________________
>>
>> ARM-allstar mailing list
>> ARM-allstar at hamvoip.org
>> http://lists.hamvoip.org/cgi-bin/mailman/listinfo/arm-allstar
>>
>> Visit the BBB and RPi2/3 web page - http://hamvoip.org
>
>
