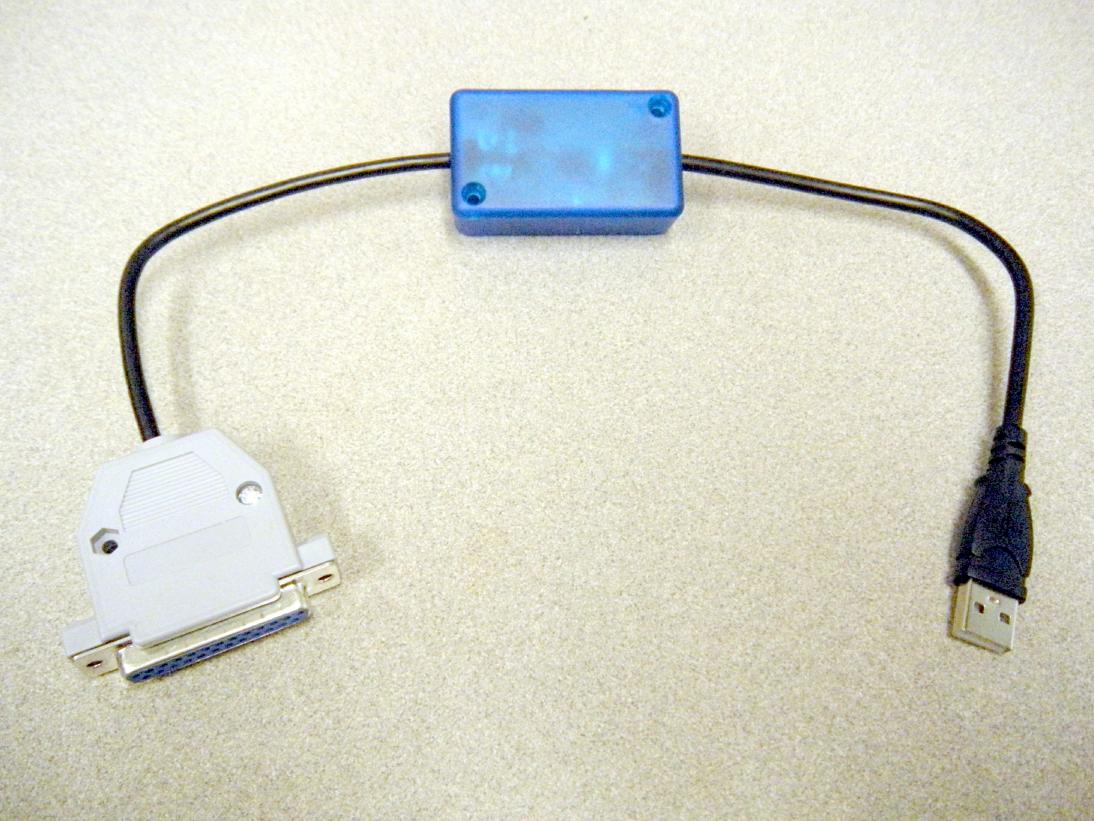

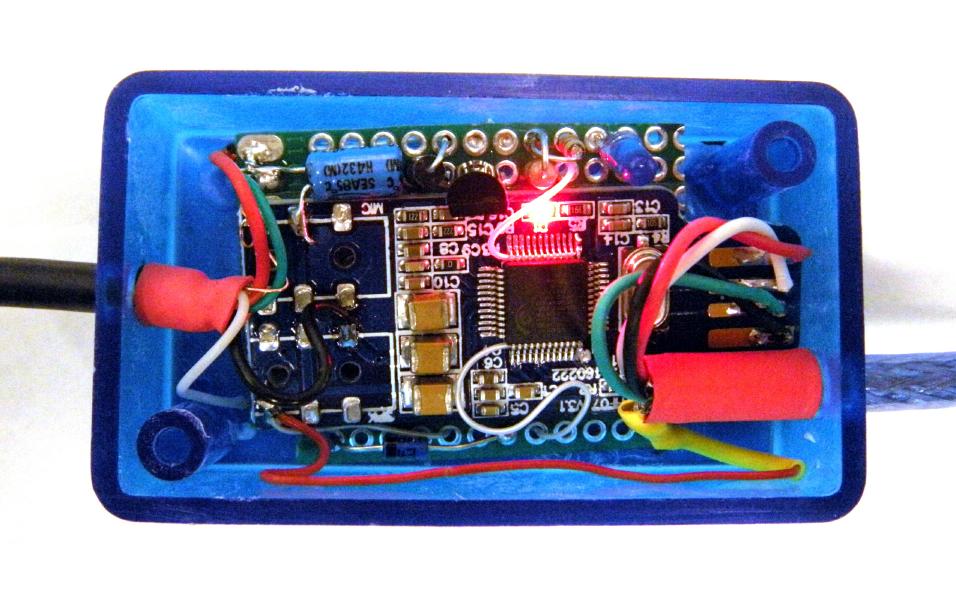

Attached are examples of how to package the open board FOB. This shows
using a DB25 wired to emulate a DMK/URI. The USB connections are wired
directly to the board from a cut USB cable. The board is mounted on a sub

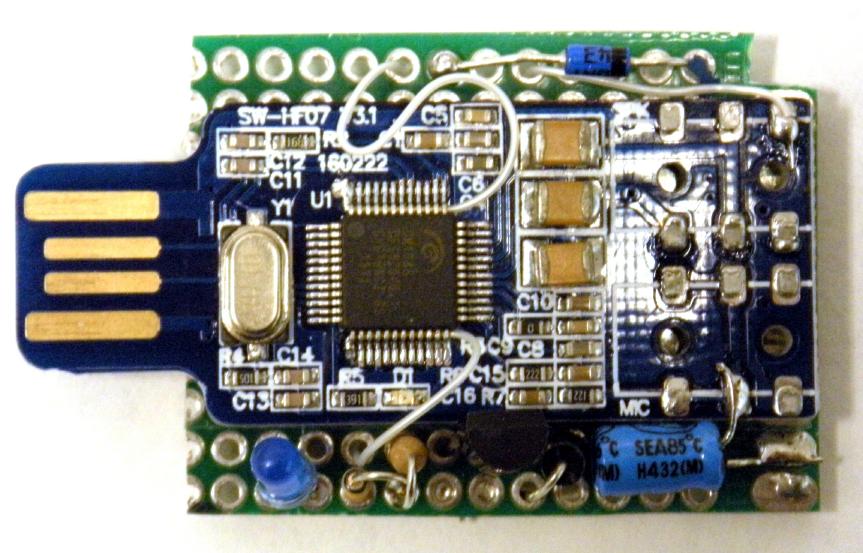

board where all of the connections are made. The two wires to the CM108 in
the second photo are fed under the row of pins from the right and tacked at
the last pin on the left.

I encourage you to make this a DIY project but the FOB shown here is being
made and is available for purchase. I hesitated to make this public as it
is more a service than a business and I don't want the producer to become
inundated!


*73 Doug*

*WA3DSP*

*http://www.crompton.com/hamradio <http://www.crompton.com/hamradio>*
