[arm-allstar] CM108 FOB

[Michael Durkin]

Thanks for the fast response Doug ...

looking at the allstar image .. i found that it looks like you guys are
using hamlib3 code with no modifications in regards to cm108

I have 2 cm108 USBID 0d8c:000c with the four GPIO pins accessible .... i
have already modified the code to successfully detect the cm108 -- i have
not moved on yet to testing GPIO.

I thought allstar group had taken hamlib3 code farther -- because i seen
some one using the  PTT(out) and dcd(carrier detect) ....

guess im still looking for whom wrote lines 243-->246 of cm108.c in hamlib3.

Im looking to change cm108.c code to also input a PTT(*Input*) so that
SDR's that dont have a physical PTT input -- can use a microphone PTT
circuit to trigger PTT. UHFSDR is one such example of a SDR with no

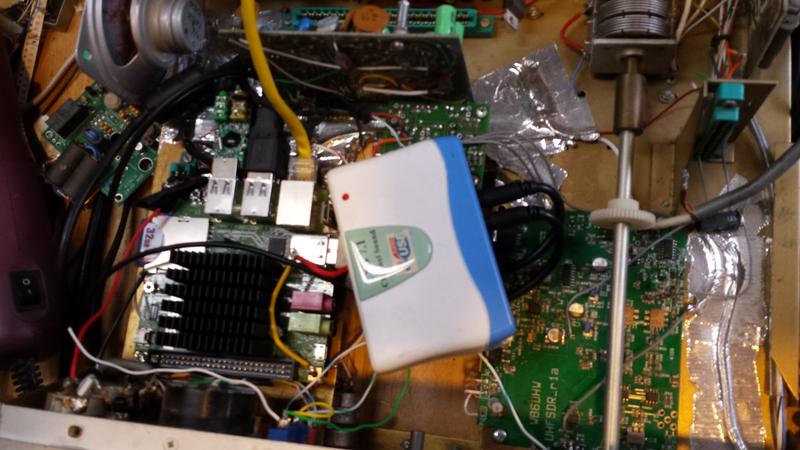

hardware to software PTT. you can see my UHFSDR on my qrz page -- KC7NOA
<https://s3.amazonaws.com/files.qrz.com/a/kc7noa/20150624_133641.jpg> -- <
https://s3.amazonaws.com/files.qrz.com/a/kc7noa/20150624_133641.jpg>

almost forgot the page that shown more than just PTT and DCD ...
http://www.garydion.com/projects/usb_fob/ its the exact same FOB i have --
and looked like their are plenty of them ...


On Thu, Nov 24, 2016 at 9:34 PM, Doug Crompton via arm-allstar <
arm-allstar at hamvoip.org> wrote:

> Michael,
>
>   Below are some links. Not all adapters are equal though. Some have more
> bits than others. There are different CM108 versions and also the CM119A/B.
>
> Bits on the Pi board can be manipulated with the GPIO command - gpio
> readall  - to see all the bit states. Keep in mind that Pi GPIO is 3V and
> you need to be careful about damaging the board with external stuff.
> Opto-isolators and/or level converters should be considered.
>
> We are also coming out with software to support a Arduino Nano GPIO
> extender which will control two nodes and have extra GPIO bits for fans
> etc.
>
> See the howto's at the hamvoip.org web page. There is a USB GPIO project
> with board available from Adafruit and also info on the gpio command for
> board bit manipulation.
>
> For USB FOB examples see:
>
> http://ohnosec.org/drupal/node/177
>
> http://latinovoip.net/allstar-and-the-gpio-fan-script-for-
> dmk-engineering-uri/
>
>
>
> *73 Doug*
>
> *WA3DSP*
>
> *http://www.crompton.com/hamradio <http://www.crompton.com/hamradio>*
>
> On Thu, Nov 24, 2016 at 11:34 PM, Michael Durkin via arm-allstar <
> arm-allstar at hamvoip.org> wrote:
>
> > Im looking for information about linux access to GPIO of the CM108.
> >
> > Im currently downloading the up to date image ( i think) and will search
> > for the cm108 information. Im wondering whom here generated the GPIO code
> > for the 4 GPIO pins on the CM108.
