[arm-allstar] Quantar and AllStar

[Tim Sawyer]

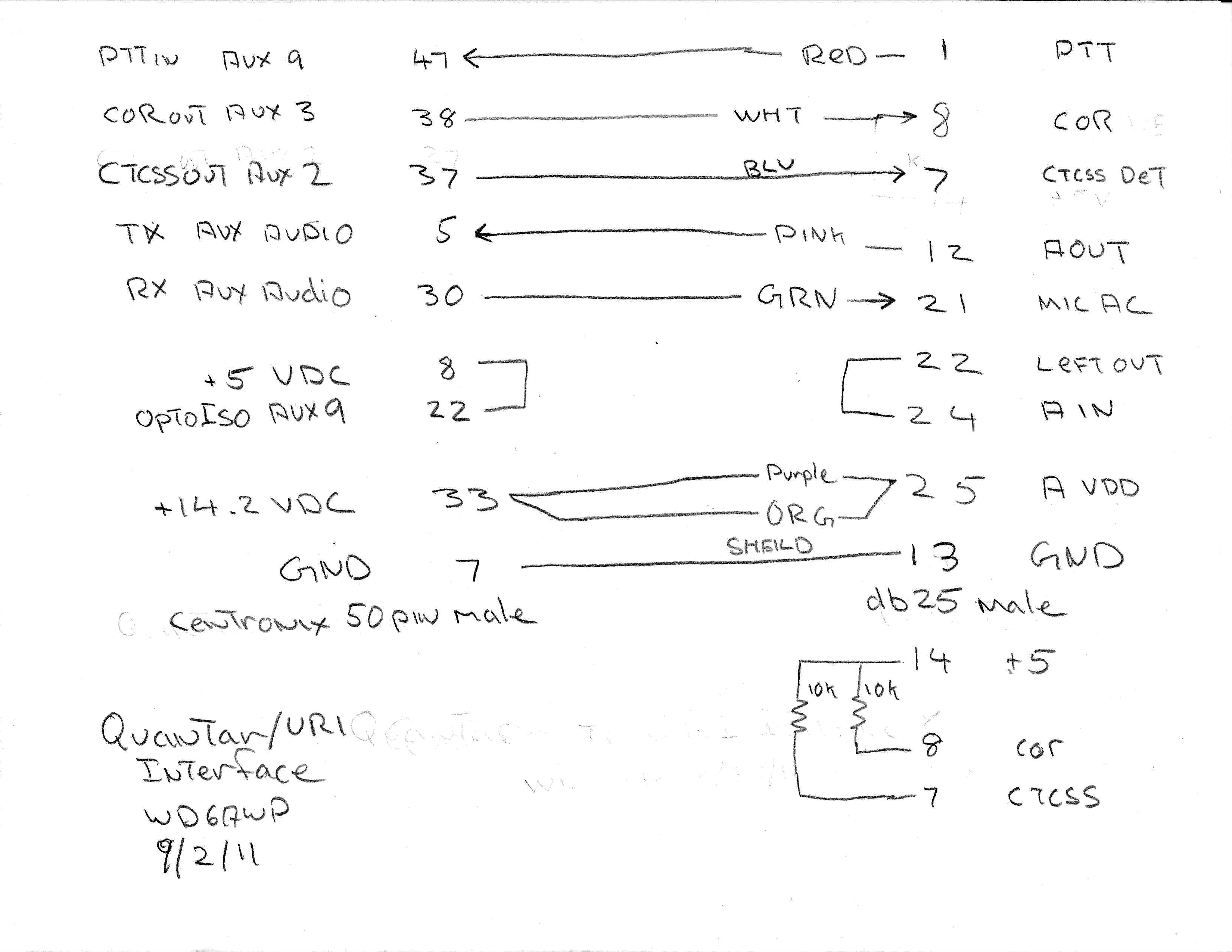

The Telco connector. See attached schematic.

On Sun, Jun 19, 2016 at 7:46 AM, wb3ehb via arm-allstar <
arm-allstar at hamvoip.org> wrote:

> On the Quantar...where are you pulling your audio from..
>  What pin, on which port? There are a number of places on the rear
> panel... what connector are you using.??
>
>
>
> Sent from my Verizon Wireless 4G LTE smartphone
> -------- Original message --------
> From: Tim Sawyer via arm-allstar <arm-allstar at hamvoip.org>
> Date: 6/18/2016 11:38 PM (GMT-05:00)
> To: ARM Allstar <arm-allstar at hamvoip.org>
> Cc: Tim Sawyer <tisawyer at gmail.com>, Jeff Olinger <jeffoli at sbcglobal.net>
> Subject: Re: [arm-allstar] Quantar and AllStar
>
> You can chase your tail or you can set the audio per procedure.
> Unfortunately the prober procedure requires a service monitor. But if you
> have one or can borrow one (and the person who knows how to use it) it's a
> simple procedure.
>
> Do the TX side first using the toggle feature of simple-usb to make the
> reference test tone and adjust for 3khz dev on the service monitor.
>
> On the RX side insert a 3khz tone with the service monitor and adjust the
> ASCII meter to the 3Khz setting.
>
> That's it. No more futzing around with levels. AllStar rocks!
>
> On Thu, Jun 16, 2016 at 5:18 PM, Jeff Olinger via arm-allstar <
> arm-allstar at hamvoip.org> wrote:
>
>> We have recently added a Uri with the Beaglebone to a quantar at a
>> location. We have great audio going out to the network but for some reason
>> we are experiencing low audio coming from the network on the quantar. We
>> have tried rx boost set to 0 and 1 with no change. We have also tried
>> adjusting it through simpleusb.config with no change. Also we tried
>> adjusting simpleusb_tune_usb.config and no change. We have another site
>> with the same configuration but that one has a controller and we are able
>> to make the difference up adjusting the audio as needed on the port the uri
>> is connected to.
>> _______________________________________________
>>
>> arm-allstar mailing list
>> arm-allstar at hamvoip.org
>> http://lists.hamvoip.org/cgi-bin/mailman/listinfo/arm-allstar
>>
>> Visit the BBB and RPi2 web page - http://hamvoip.org
>>
>
>
>
> --
> --
> Tim
>
> _______________________________________________
>
> arm-allstar mailing list
> arm-allstar at hamvoip.org
> http://lists.hamvoip.org/cgi-bin/mailman/listinfo/arm-allstar
>
> Visit the BBB and RPi2 web page - http://hamvoip.org
>



--
--
Tim
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://lists.hamvoip.org/pipermail/arm-allstar/attachments/20160619/da4d8d2e/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Quantar URI Interface.jpeg
Type: image/jpeg
Size: 600419 bytes
Desc: not available
URL: <http://lists.hamvoip.org/pipermail/arm-allstar/attachments/20160619/da4d8d2e/attachment-0001.jpeg>
