[arm-allstar] BBB Management Features

[Doug Crompton]

Richard,

 Thanks for the scripts. Input is always welcome. I am real busy on the RPi2 release right now but I promise I will soon get a chance to look at them. It certainly looks like something we might expand on. Any chance you could send me translated copies?
73 Doug
WA3DSP
http://www.crompton.com/hamradio

From: aubinri at bell.net
To: arm-allstar at hamvoip.org
Date: Sat, 28 Mar 2015 21:05:00 +0000
Subject: [arm-allstar] BBB  Management  Features




I loaded and tested  your latest distro on a BBB ,thanks for the great  work, it works fine even on a 3G Cell data link.
I added  3  very light items on the image I now use to help remote management.
1- To make our repeater operators able to  manage their link I added a mini web page  that points to 5  cgi scripts  for the  following  commands (rpt stats Node # ,  BBB memory  CPU usage and login,  Connect to  node #, Disconnect from node # and Reboot BBB).

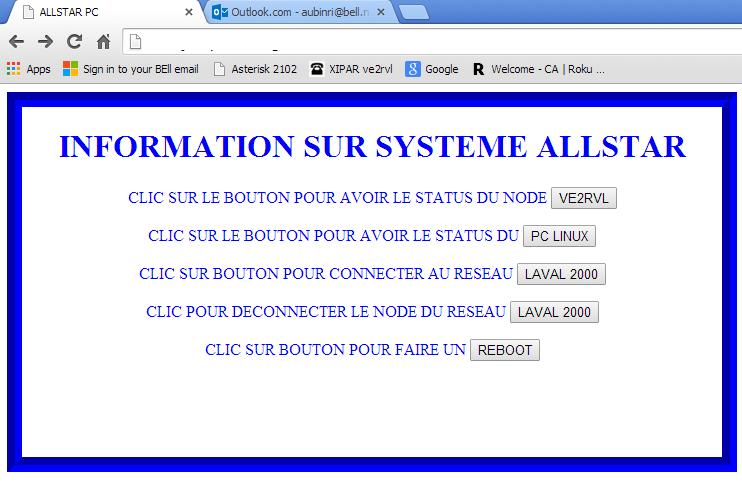

Here is a capture of the  web page screen


The web page is in french but can be translated rapidly if there is  any interest .
I am  not a programmer  so my scripts are very crude .. Feel free to  comment on any  improvements .....
To run the scripts , the  web user needs an  entry in sudo   with cmd visudo addhttp ALL = NOPASSWD :/usr/bin/reboothttp ALL = NOPASSWD :/usr/bin/asterisk
Webpage is not passwd protected but no damage  other than  disconnect is permitted ..
See  my 4 scripts attached to the email and  the index.html  i use .
Next to do is to add  commands in the BBB install script  to  customize my cgi scripts ..
 2-  Added support  for   WEBDAV in BBB  Apache server  to edit /etc/asterisk  ( Passwd protected non root user)
3-  Added  Midnight  Commander on the image (yum install mc) for ssh root  logins  system management.


Hope this is of any interest
Richard Aubin VE2DJE  SYSOP for VE2RVL network


--Forwarded Message Attachment--



Test



INFORMATION SUR SYSTEME VE2DJE

CLIC  SUR LE BOUTON  POUR AVOIR LE STATUS DU NODE




CLIC  SUR LE BOUTON  POUR AVOIR LE STATUS DU




CLIC SUR BOUTON POUR CONNECTER  AU NODE




CLIC SUR BOUTON POUR




CLIC SUR BOUTON POUR FAIRE UN
