[arm-allstar] YET, YET, Another Cheap USB FOB Mod

Jim Korenz n8pxw at yahoo.com
Mon Nov 17 20:15:45 EST 2014

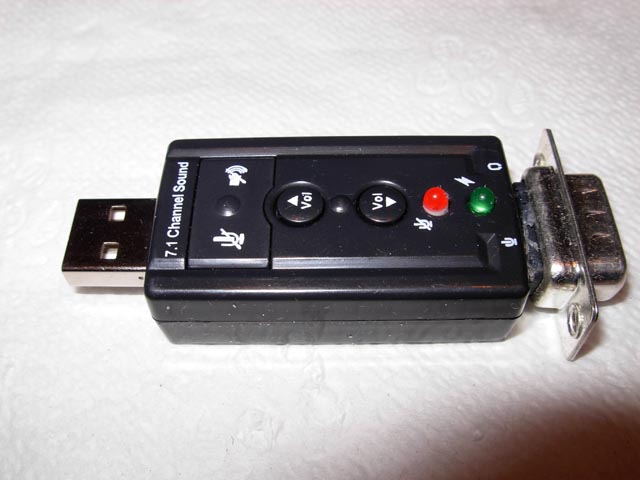

Oh well, I might as well throw another log on the fire. Here's my version of a cheap URI. It even uses the original case. I epoxied a 0.3 by 0.6 in. small piece of perfboard where the audio jacks were mounted. I then attached a DB9 female connector to bring the signals out. Maximum recycle of parts, minimum new parts, 2 diodes, a 2n7002 transistor, 2 resistors.
    JimK   N8PXW
