[arm-allstar] Baofeng 888

[Gervais Fillion]

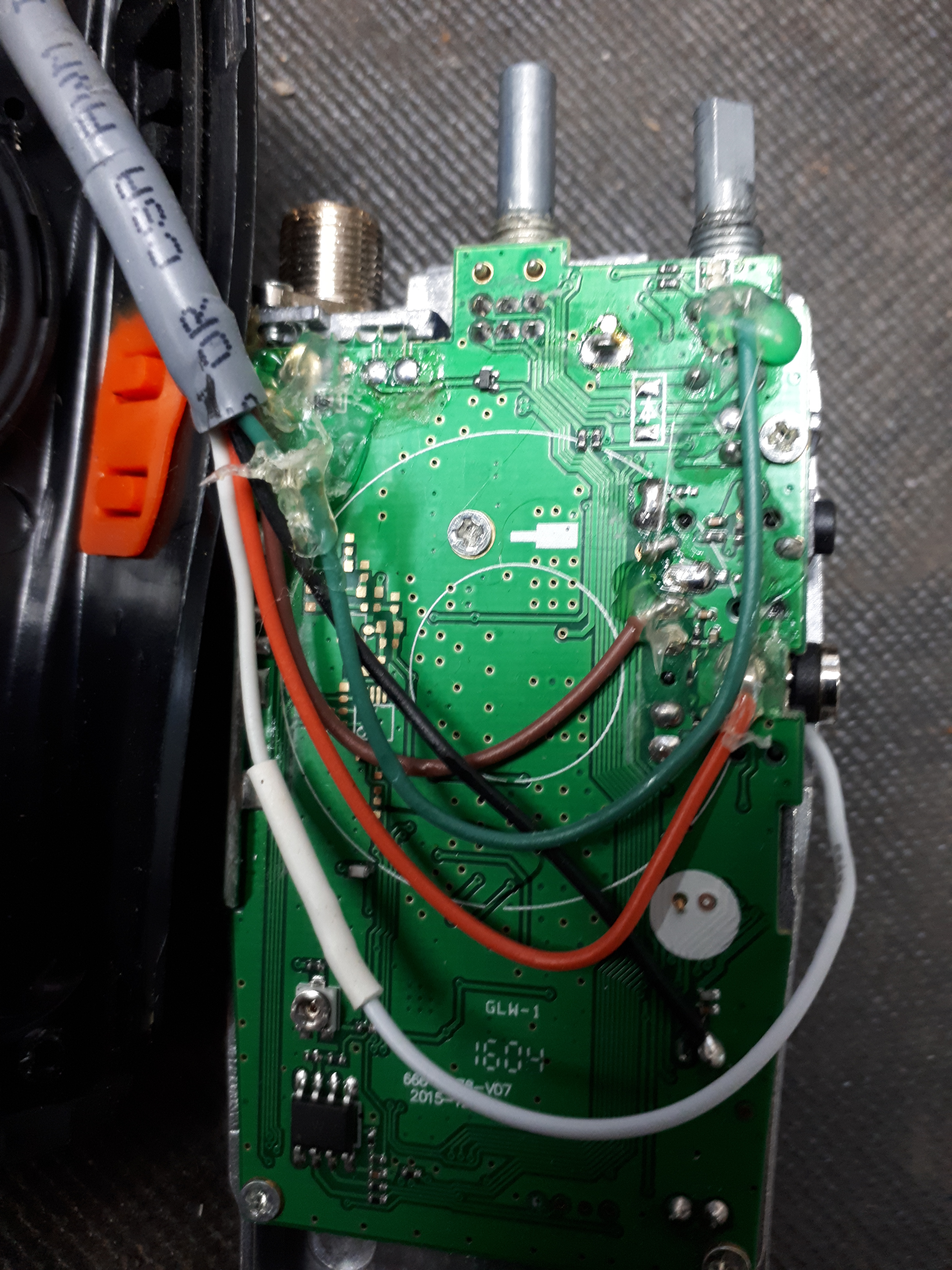

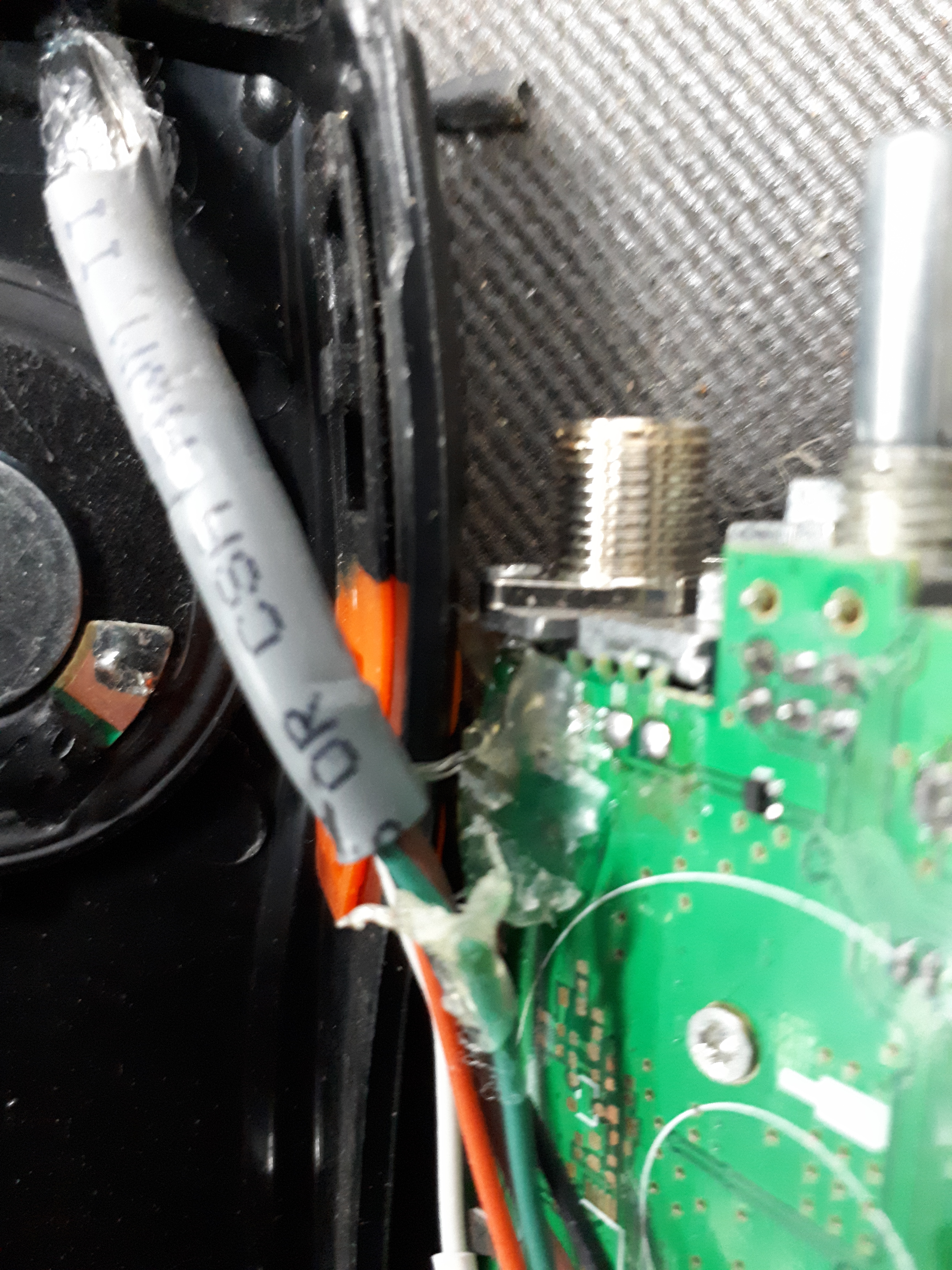

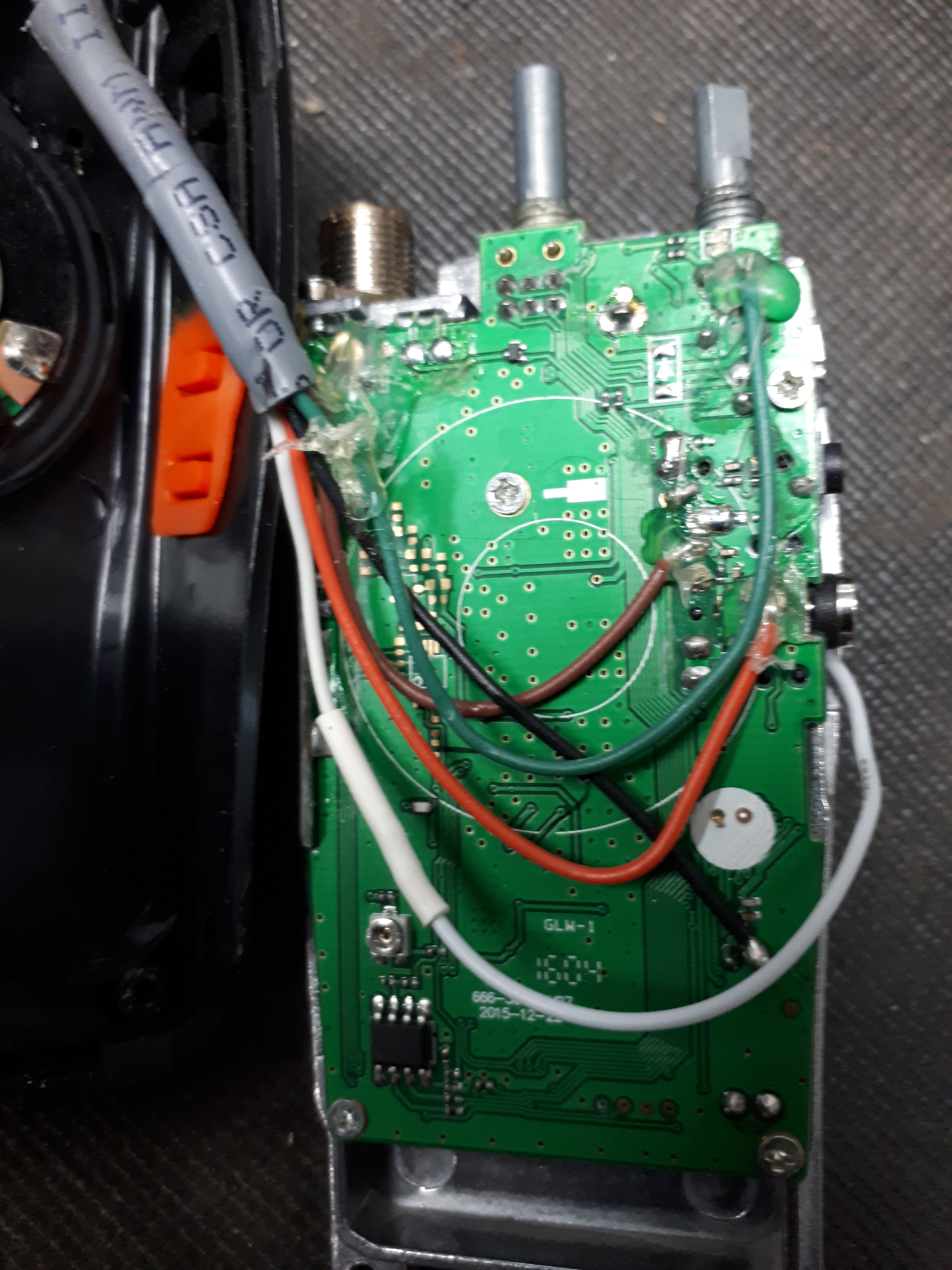

i think my 888 here is a little older,on his mother board it is written 2015 ?

can you confirm to me each of the cables doug,

ptt,audio,,,?

i check on the website and its not clear enough to me .

the white here is the cos,

thanks in advance

ps i need the right words because i am tranfering it on a GE Phoenix and need to be sure when i weld

73
gervais

________________________________
De : ARM-allstar <arm-allstar-bounces at hamvoip.org> de la part de "David McGough via ARM-allstar" <arm-allstar at hamvoip.org>
Envoyé : 26 mai 2020 22:54
À : "Doug Crompton via ARM-allstar" <arm-allstar at hamvoip.org>
Cc : David McGough <kb4fxc at inttek.net>
Objet : Re: [arm-allstar] Baofeng 888


From: Larry <larry at thunderbolt.net>
To: arm-allstar at hamvoip.org
Subject: Re: [arm-allstar] Baofeng 888



Doug he is referring to the blue COS wire on your BF-888 article.
He needs to scroll down to the image of the opposite side of the circuit
board and see where the blue wire goes on down to the final COS
connection.

https://www2.hamvoip.org/hamradio/baofeng888/DSC01723%20-%20marked.jpg
https://www2.hamvoip.org/hamradio/baofeng888/DSC01714.jpg

Larry - N7FM




On Tue, 26 May 2020, "Doug Crompton via ARM-allstar" wrote:

> You will have to give me more info - what blue cable - what image?


*73 Doug*

*WA3DSP*

*http://www.crompton.com/hamradio <http://www.crompton.com/hamradio>*


On Tue, May 26, 2020 at 12:50 PM "Gervais Fillion via ARM-allstar" <
arm-allstar at hamvoip.org> wrote:

> Doug
> the COS ,blue cable,its not clear where it is connected at his end?
>
> gervais
>
