[arm-allstar] BF-888 new boards

[Joe KD2NFC]

What do they look like ?


-------------- next part --------------
A non-text attachment was scrubbed...
Name: image1.jpeg
Type: image/jpeg
Size: 3794960 bytes
Desc: not available
URL: <http://lists.hamvoip.org/pipermail/arm-allstar/attachments/20190426/0e6d538b/attachment-0001.jpeg>
-------------- next part --------------


Sent from my iPhone

> On Apr 26, 2019, at 11:40 AM, Fred C. via ARM-allstar <arm-allstar at hamvoip.org> wrote:
>
>
> Hi guys,
>
> Does anyone has an update on how to modify the new boards?
> I just ordered a couple of BF-888 and they are shipped with these boards.
>
> 73
> -fred-
>
>
>
>
>
>
>
>
> --
> Fred C. (070 #2569)
> w6bsd at bsdworld.org <mailto:w6bsd at bsdworld.org>https://www.qrz.com/db/W6BSD <https://www.qrz.com/db/W6BSD>
>
>
>
>
>> On Apr 26, 2019, at 7:59 AM, Joe KD2NFC via ARM-allstar <arm-allstar at hamvoip.org> wrote:
>>

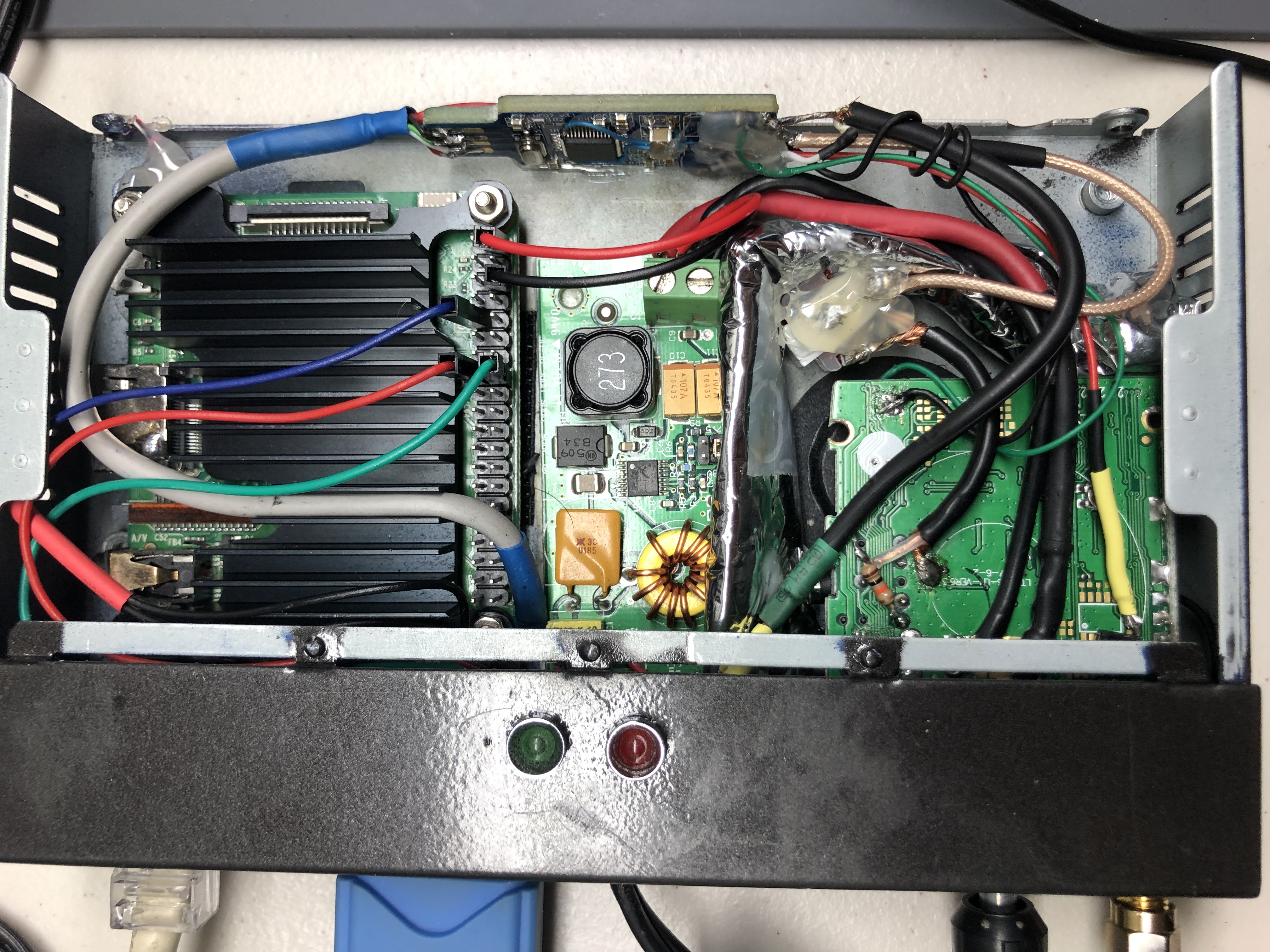

>> I stripped my Baofeng down and tapped right of the board what I needed.  My 888 is different then the one below but I followed those instructions. Tapping from the High side of volume control and mic line with some resistors to wiring COR right the op amp. I don?t need to worry about volume control on the knob, I adjust in the menu. Actually I took my volume knob off to fit it all in a small case.
>>
>> Certainly not a plug and play route, I put all the guts in a box and made a nice kit. Not sure how others are doing it but for me the 888 is a great radio to make a kit out of.
>>
>>
>> <image1.jpeg>
>>
>> Mine
>>
>>
>> <image2.jpeg>
>>
>>
>> Sent from my iPhone
>>
>>> On Apr 26, 2019, at 10:26 AM, Doug Crompton via ARM-allstar <arm-allstar at hamvoip.org> wrote:
>>>
>>> Any of the Baofeng radios need internal modifications to work with Allstar
>>> BUT you can build an external circuit to use the mic/earphone jack on just
>>> about all of the Baofengs the 888 NOT being included. I believe George is
>>> going to offer that mode on a FOB board in the near future. I will put out
>>> a howto on that simpler mod. The downside is the volume control effects the
>>> RX audio so it must be adjusted and fixed at a specific location. Again
>>> this will not work on the 888 but does work on the uv82 and uv5 models.
>>>
>>>
>>> *73 Doug*
>>>
>>> *WA3DSP*
>>>
>>> *http://www.crompton.com/hamradio <http://www.crompton.com/hamradio>*
>>>
>>>
>>>
>>> On Fri, Apr 26, 2019 at 10:19 AM "Joe KD2NFC via ARM-allstar" <
>>> arm-allstar at hamvoip.org> wrote:
>>>
>>>> The Baofeng 888 is a great radio for an AllStar node. It works, been
>>>> tested and in use by many. Heck it should be officially endorsed by Baofeng
>>>> themselves and the FCC. Lol.
>>>>
>>>> But seriously, it?s the cheapest workable option out there so go for it.
>>>>
>>>> Joe
>>>> KD2NFC
>>>>
>>>>
>>>> Sent from my iPhone
>>>>
>>>>> On Apr 26, 2019, at 9:29 AM, Doug Crompton via ARM-allstar <
>>>> arm-allstar at hamvoip.org> wrote:
>>>>>
>>>>> Gervais,
>>>>>
>>>>> What power do you want to run? Is this local or longer distance? The
>>>>> Baofeng 888 or UV82 would be a good choice for local low power - ~1W. I
>>>>> would not recommend the TYT's as we have seen many problems with them in
>>>>> longer duty applications. The Alinco DR-x35 series are good but more
>>>>> expensive. There are not a lot of in between radios say in the $50 to
>>>> $100
>>>>> area that are good.
>>>>>
>>>>>
>>>>> *73 Doug*
>>>>>
>>>>> *WA3DSP*
>>>>>
>>>>> *http://www.crompton.com/hamradio <http://www.crompton.com/hamradio>*
>>>>>
>>>>>
>>>>>
>>>>> On Fri, Apr 26, 2019 at 8:31 AM "Gervais Fillion via ARM-allstar" <
>>>>> arm-allstar at hamvoip.org> wrote:
>>>>>
>>>>>> hi all
>>>>>> well is there a chinese mobile radio that i could used here for my node?
>>>>>> Motorola's are rare as hell and too $ and if a chinese can do the job
>>>> for
>>>>>> me,why not.
>>>>>>
>>>>>> i saw some month ago a member writing some article,the COS is easy to
>>>> find
>>>>>> on his board,
>>>>>> my system here is not working as i would like ,
>>>>>>
>>>>>> i need a radio and the soundcard modified for it.
>>>>>>
>>>>>> Right now i am using an GE Phoenix as TX and a Baofeng as receiver
>>>>>>
>>>>>> thanks for your help
>>>>>>
>>>>>> Gewrvais
>>>>>> ve2ckn
>>>>>> riviere-bleue
>>>>>>
