[arm-allstar] TMD710 to Uri Connections

[Doug Crompton]

Joe,

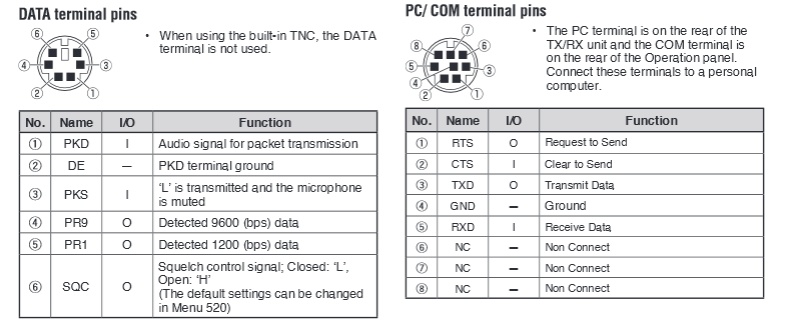

 OK I looked up the manual. You are on the wrong connector. You want the data connector not the comm connector. I am attaching a photo from the manual. You want the connector on the left.

Quickly looking at it connections would be -

>From the LEFT chart in the attached photo.

Radio                     DMK
  1         TX aud         22
  2           GND         19/20
  3          PTT            1
  5         RX aud        21
  6         COS             8
You would use  carrierfrom=usb     in simpleusb.conf   and no deemphasis.

73 Doug
