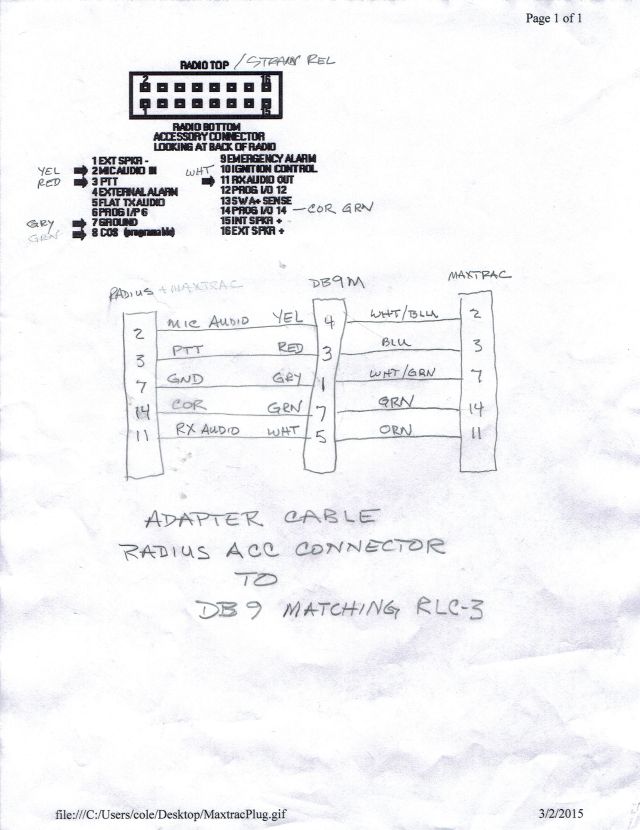

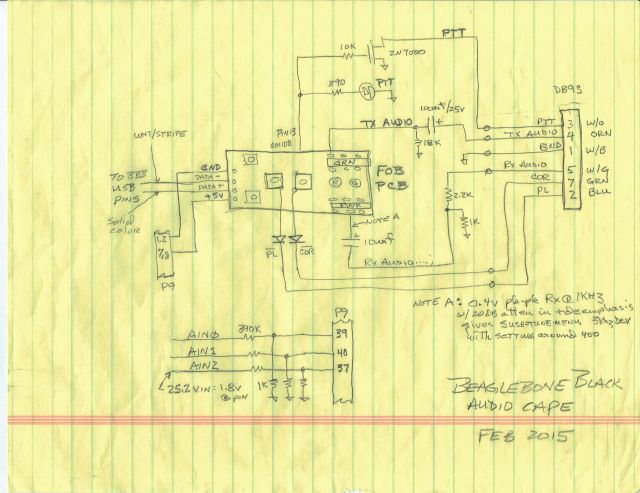

Here are two schematics that should give you some help.  One is for the FOB
adapting it to a DB9 radio interface connector and the other is the cable
that goes to the Maxtrac/Radius 16 pin accessory connector.



Cole, AA7RD



From: arm-allstar-bounces at hamvoip.org
[mailto:arm-allstar-bounces at hamvoip.org] On Behalf Of Mani
Sent: Saturday, April 18, 2015 2:25 PM
To: arm-allstar at hamvoip.org
Subject: [arm-allstar] Radius M1225 to URI



Good afternoon to the group,



Can anybody help me out with the wiring connections between the URI and a
motorola radius M1225? If I can get this wired up I should be in business on
the RPi 2, I hope.



73's

Mani - KH2FI
